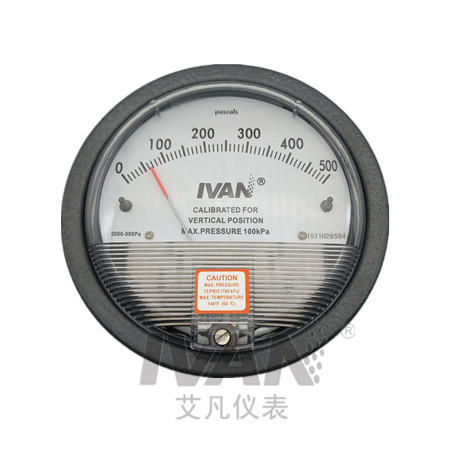

OEM Micro Low Differential Pressure Gauge For Air Pressure Gauge

Name: OEM Micro Low Differential Pressure Gauge For Air Pressure Gauge
Brand: IVANPER
Price: 16.00 USD

China OEM Micro Low Differential Pressure Gauge For Air Pressure Gauge wholesale

Place of Origin : Beijing, China

Brand Name : IVANPER

Model Number : AF2000

MOQ : 10 pieces

Price : $16.00/pieces 10-199 pieces

Warranty : 12 months

Customized support : OEM, ODM

Material : Plastic

Contact Now

Product Description

OEM Micro Low Differential Pressure Gauge For Air Pressure Gauge

Specification

Specifications
0 – 30Pa	0 – 400Pa	0 – 2.5KPa	0 – 30KPa
0 – 60Pa	0 – 500Pa	0 – 3.0KPa	-15~0~15Pa
0 – 100Pa	0 – 600Pa	0 – 5.0KPa	-30~0~30Pa
0 – 125Pa	0 – 750Pa	0 – 8.0KPa	-60~0~60Pa
0 – 200Pa	0 – 800Pa	0 – 10KPa	-125~0~125Pa
0 – 250Pa	0 – 1KPa	0 – 15KPa	-250~0~250Pa
0 – 300Pa	0 – 2KPa	0 – 25KPa	-500~0~500Pa
Customizable	-1~0~1KPa	-3~0~3KPa	-5~0~5KPa
Customizable		-2~0~2KPa	-4~0~4KPa	-10~0~10KPa

Specifications of differential pressure gauge

Parameter
Ambient temperature	-20 ~ 80°C
Medium temperature	-20 ~ 500°C
Pressure port	1/8″ taper pipe thread
Shell material	aluminum alloy
Accuracy	±2.5% (Default)(Customizable)
Standard fittings	tap, hose, bracket
Rated pressure	-68 ~ 103KPa

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profie

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

FAQ

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Specification Micro pressure manometer differential pressure gauge
1 Medium: air and non-combustible, compatible gases (optional gas)
2 Housing: cast aluminum housing or ABS shell, glass beveled panels. Dark gray coating, can withstand 168 hours salt spray test
3 Accuracy: 2% FS (mm units, and the range with the corresponding pa)
4 Pressure range:. -20Hg To 15 psig (-0.677 bar to 1.034 bar)
5 Temperature range: 20 to 140 ° F (-6.67 to 60 ° C)
6 Hole size: 114mm
7 Mounting Orientation: Diaphragm in vertical
8 Connections: same 1/8 "NPT high and low pressure fittings, one pair on the side, one pair in the back
9 Weight: 500g / only
10 Standard accessories: two 1/8 "NPT threaded connectors for high and low pressure fittings can be connected with a rubber tube;
two 1/8" NPT plug for blocking the remaining two high and low pressure ports; three a threaded countersunk mounting coupling
(mounting ring, according to buckle holder for three interfaces to replace MP and count on attachments HP)

OEM Micro Low Differential Pressure Gauge For Air Pressure Gauge Images
